Folding and sliding doors

Types of Folding doors

  • Two Pannel (Both Pannel Slide One Side)

  • Three Pnnel (All Pannel Slide One Side)

  • Four Pannel (All Pannel Slide One Side)

  • Five Pannel  (All Pannel Slide One Side)

  • Five Pannel Plus (Five Pannel Sliding Either SIDE)

  • Five Pannel One Plus Side (FIve Pannel Slide Either One Side

  • Four Pannel One Plus Side (Four Pannel Slide Either One Side

  • Two Pannel (Both Pannel Slide One Side)

  1. As the drawings show(two doors open in one side only).

  2. The width of each glass door size should be less than 800mm

  3. Panels Width/Height must be Calculated as per formula given below.

  4. Above Gaps shown in elevation must be maintain during the installations.
    ALREADY INCLUDED IN FORMULA ,
    DO NOT DEDUCT SEPARATELY.

  5. H= CLEAR HEIGHT FROM TOP OF TRACK TO FLOOR LEVEL

  6. Panel "A" = [(W-41) / 2] -17

  7. Panel "C" = [(W-41) / 2] +45

  8. Panel Height ''H2'' = H-60mm

  • Three Pnnel (All Pannel Slide One Side)

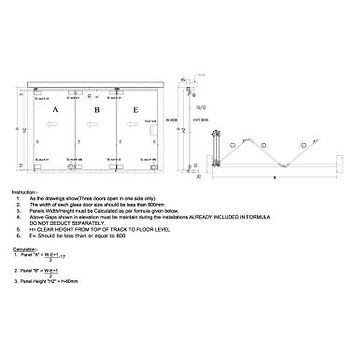

  1. As the drawings show(Three doors open in one side only)

  2. The width of each glass door size should be less than 800mm

  3. Panels Width/Height must be Calculated as per formula given below.

  4. Above Gaps shown in elevation must be maintain during the installations.
    ALREADY INCLUDED IN FORMULA
    DO NOT DEDUCT SEPARATELY.

  5. H= CLEAR HEIGHT FROM TOP OF TRACK TO FLOOR LEVEL

  6. E= Should be less than or equal to 800

Calculation:-

  1. Panel "A" = [ (W-E+1) /2] - 17

  2. Panel "B" = (W-E+1) / 2

  3. Panel Height ''H2'' = H-60mm

  • Four Pannel (All Pannel Slide One Side)

Instruction:-



  • As the drawings show(four doors open in one side only).

  • The width of each glass door size should be less than 800mm

  • Panels Width/Height must be Calculated as per formula given below

  • Above Gaps shown in elevation must be maintain during the installations.
    ALREADY INCLUDED IN FORMULA ,
    DO NOT DEDUCT SEPARATELY.

  • H= CLEAR HEIGHT FROM TOP OF TRACK TO FLOOR LEVEL



Calculation:-

  1. Panel "A" = [ (W-47)/4]  -17

  2. Panel "B" = [ (W-47) /4 ]

  3. Panel "C" = [ (W-47) / 4 ] +45

  4. Panel Height ''H2'' = H-60mm

  • Five Pannel  (All Pannel Slide One Side)

Instruction:-

  • As the drawings show(Five doors open in one side only).

  • The width of each glass door size should be less than 800mm

  • Panels Width/Height must be Calculated as per formula given below.

  • Above Gaps shown in elevation must be maintain during the installations.
    ALREADY INCLUDED IN FORMULA ,
    DO NOT DEDUCT SEPARATELY.

  • E= Should be less than or equal to 800.



Calculation:-

  1. Panel "A" = [ (W-E-5) /4 ] -17

  2. Panel "B" = [ (W-E-5) /4]

  3. Panel Height ''H2'' = H-60mm

  • Five Pannel Plus (Five Pannel Sliding Either SIDE)

Instruction:-

  • As the drawings show(Five doors open to either side only).

  • The width of each glass door size should be less than 800mm

  • Panels Width/Height must be Calculated as per formula given below.

  • Above Gaps shown in elevation must be maintain during the installations.
    ALREADY INCLUDED IN FORMULA,
    DO NOT DEDUCT SEPARATELY.

  • H= CLEAR HEIGHT FROM TOP OF TRACK TO FLOOR LEVEL

  • E= Should be less than or equal to 800

  • 0.5W=Half of Clear width at site

Calculation:-

  1. Panel "A" = [ (0.5W-E-2 ) /4] -17

  2. Panel "B" =[ (0.5W-E-2) /4]

  3. Panel Height ''H2'' = H-60mm
